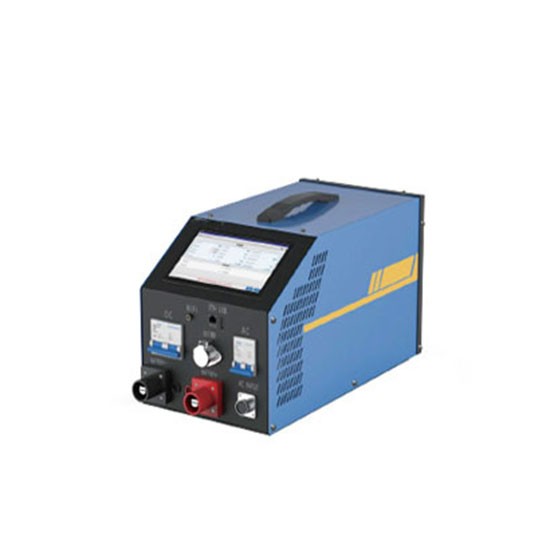

FGHK-mini Series Portable Regenerative Charge & Discharge All-in-One Tester | Battfix

Charge Current/Accuracy 0–60A; < 1%
Charge Voltage/Accuracy 2–120V; 0.1mV; < 1%
Display 7-inch Color LCD Touch
Power Supply AC 220V±15%
Data Storage Interface USB
PC Data Transfer CAN RS485
Dimensions (mm) 225×475×245
Weight (kg) 11.3

The FGHK-mini Series is a portable, intelligent battery charge and discharge system that features a unique energy grid connection function. This enables the discharged energy from the battery to be fed back into the grid, promoting efficient energy recovery and utilization. Compact and easy to operate, the system is designed for both professionals and non-experts, with simple training required to get started. Whether in distributed energy storage systems or off-grid photovoltaic battery maintenance, the FGHK-mini excels in providing solutions for battery management.

Main Applications:

Home Energy Storage: Battery charge and discharge maintenance in home storage systems, leveraging the energy grid connection function to recycle energy, reducing energy consumption during testing.
Warehouse Power Distribution Testing: Used for battery maintenance and testing in warehouse applications, optimizing energy efficiency.

Key Features

Versatile Testing Modes: Offers multiple testing modes, including constant voltage, constant current charging, constant power charging, constant voltage, and constant current discharging, as well as constant power discharging. Precise control of current, voltage, and power ensures efficient, safe, and stable operation.
Energy Grid Connection: Efficiently feeds the energy generated during battery discharge back into the grid, enhancing energy recovery and significantly reducing excess energy consumption and heat generation.
Multi-Step Test Process: Users can freely set up multi-step test procedures based on specific testing objectives and requirements, enabling comprehensive and detailed performance analysis to meet customized needs in complex applications.
Real-Time Monitoring: Provides real-time tracking of battery test parameters, offering insights into battery performance changes during testing.
Precision Calibration: When battery parameters such as voltage or current drift, on-site calibration ensures consistent accuracy.
Comprehensive Data: Displays individual cell voltage, internal resistance bar charts, total voltage curves, current curves, capacity histograms, and data tables simultaneously for a complete view of battery health.

FGHK-mini	1205FE	2205FE
Discharge Current/Accuracy	0–60A; 0.1A; < 1%	2–120V; 0.1V; < 0.5%
Discharge Voltage/Accuracy	2–120V; 0.1V; < 1%	2–220V; 0.1V; < 0.5%
Charge Current/Accuracy	0–60A; < 1%	2–120V; 0.1mV; < 1%
Charge Voltage/Accuracy	2–120V; 0.1mV; < 1%	2–220V; 0.1mV; < 0.5%
Display	7-inch Color LCD Touch Screen
Power Supply	AC 220V±15%
Data Storage Interface	USB
PC Data Transfer	CAN RS485
Dimensions (mm)	225×475×245	225×475×245
Weight (kg)	11.3	11.3
