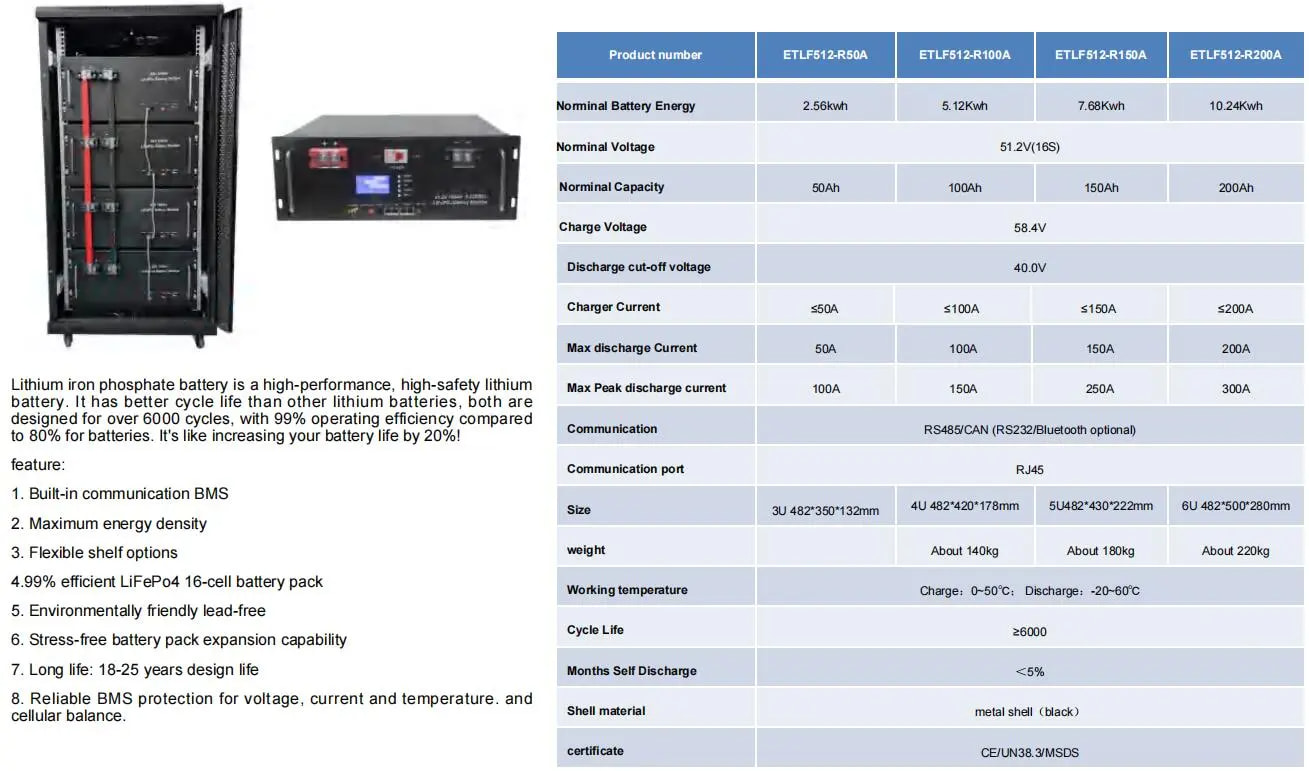

Nominal Voltage: 51.2V (Configured as 16S)
Rated Capacity: 50Ah
Continuous Discharge Limit: 50A
Peak Discharge (Short Duration): Up to 100A
Recommended Charging Voltage: 58.4V
Operating Voltage Window: 40.0V – 58.4V
Maximum Charging Current: 50A
Form Factor & Dimensions: 3U Rackmount, 480mm × 350mm × 132mm
Working Temperature Range: -20°C to 60°C
Key Features:
Long Service Life: Over 6000 charge-discharge cycles for extended durability
Safe Operating Temperatures: Charging range: 0°C to 50°C; Discharging range: -20°C to 60°C
Built-In Protections:
Short-circuit safeguard
Overcurrent detection
Overvoltage protection
Undervoltage (low voltage) protection
Over-temperature shutdown

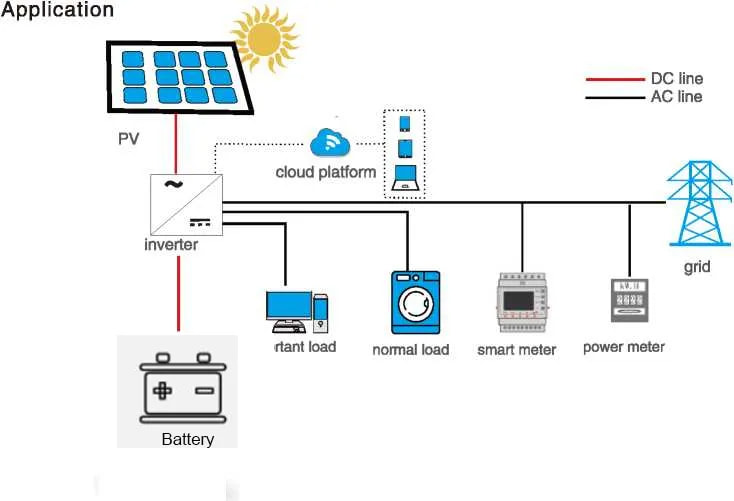

Versatile Use: Suitable for both residential solar energy storage systems and commercial energy storage applications
