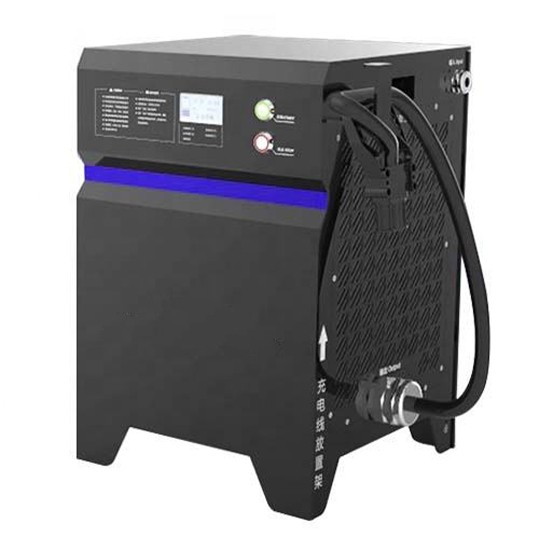

12KW 120V CDC-D120100 Intelligent High Frequency Battery Charger | Battfix

Parameter Specification
Model Number CDC-D120100
Output Frequency 50–60Hz
Input Current 60A (3-phase)
Input Mode L1+L2+L3+PE / L1+L2+L3+N+PE
Power Factor >0.99
THD (Total Harmonic Distortion) <10%
Efficiency >95%
Ripple Current ±3%
Current Accuracy ±0.5%
Voltage Accuracy ±0.5%
Ripple Voltage ≤±1% Vo peak-to-peak value, 20MHz bandwidth
Charging Accuracy Voltage: 0.01V; Current: 0.1A; Time: 1S

OVERVIEW

The CDC-D120100 Intelligent High Frequency Charger is a professional charging solution designed for lead-acid batteries, lithium power batteries, and supercapacitors. It adopts high-frequency switching power supply technology with a modular combined structure, ensuring stability, reliability, and easy scalability.

The system integrates power factor correction (PFC), power conversion, monitoring, display, electrical control, communication, and protection units, providing fully automated charging management. It is ideal for cyclic charging applications across industrial, commercial, and energy storage sectors.

FEATURES

High Efficiency

Conversion efficiency up to 95%
Power factor correction (PFC >99%)
Low harmonic distortion (THD ≤10%)
Wide voltage input range: 90–264V
Advanced ZVS + MOSFET high-frequency design

Safety & Reliability

Modular architecture for easy maintenance
Ripple current: ±3%
Output ripple voltage: ±1%
Current accuracy: ±2%
Patented module cooling system

User-Friendly Operation

Clear LCD/LED display
Built-in charging scene lighting
Detachable dust filter for durability
One-button operation for convenience
Multi-protocol communication: RS485/232/CAN

Intelligent Charging

Load redundancy protection
Smart compensation charging algorithm
Storage for 1000 historical alarm records
Adaptive charging management for lead-acid & lithium batteries
Customizable battery charging profiles

Model	CDC-D24400	CDC-D48200	CDC-D80120	CDC-D120100
Voltage Level	24V (18-30V)	48V (30-60V)	80V (40-100V)	120V (60-132V)
Rated Current	1-400A	1-200A	1-120A	1-100A
Input Voltage	220V±20% / 380V±20%
Input Current	60A (3-phase)
Output Power	12KW
Input Mode	L1+L2+L3+PE/L1+L2+L3+N+PE
Power Factor	>0.99
THD	<10%
Efficiency	>95%
Ripple Current	±3%
Current Accuracy	±0.5%
Voltage Accuracy	±0.5%
Ripple Voltage	±11% Vo peak-to-peak value, 20MHz bandwidth
Charging Accuracy	Voltage: 0.01V; current: 0.1A; time: 1S
BMS Power Supply	12V / 24V optional
Protection	OTP, OVP, OCP, short circuit, reverse polarity
Connector	Anderson / REMA / customizable
Communication	RS485 / RS232 / CAN Bus
MTBF	80000H
Safety Standard	comply with CE, IEC61851 standards
Display	touch LCD
Cooling	fan cooling
Environment	working temp: -20°C ~ 65°C (>40°C, reduced power); working humidity: 20-90%RH storage temp: -40°C ~ 85°C; storage humidity: 10-95% RH
