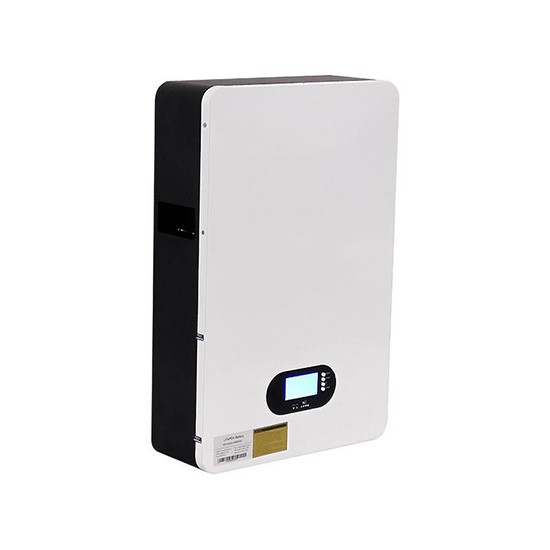

Wall-Mounted 48V 51.2V 5kWh 10kWh LiFePO4 Battery for Home Energy Storage System

Nominal Voltage: 25.6V / 51.2V
Nominal Capacity: 100Ah / 200Ah
Maximum Discharge Current: 100A / 200A
Operating Voltage Range: 29.2V–22.0V / 58.4V–42.0V
Maximum Charge Current: 100A
Communication Protocols: RS485 / CAN
Design: Stackable modules, no external wiring required
Cycle Life: ≥ 6000 cycles (at 80% DOD under normal conditions)

Optimized Home Energy Storage System with LiFePO4 Technology

Maximize your solar power potential with our advanced LiFePO4 energy storage batteries. Designed for high efficiency and long-term use, this system supports up to 50kWh capacity to keep your home or business reliably powered.

Key Benefits

Long service life with over 6000 charge and discharge cycles
Operates reliably in a wide temperature range from -20°C to 60°C
Built-in safety protections including overvoltage, overcurrent, short circuit, and high temperature safeguards
Stable output performance, ideal for off-grid, hybrid, and grid-connected systems
Modular and expandable design for flexible energy solutions

Product Features

Uses EVE Grade A lithium iron phosphate (LiFePO4) cells
Cycle life exceeds 6000 cycles at 80% depth of discharge
Charging temperature range: 0°C to 50°C
Discharging temperature range: -20°C to 60°C
Integrated protection systems:
Short circuit protection
Overcurrent protection
Overvoltage and undervoltage protection
High temperature protection

Applications

Suitable for solar home energy storage systems, residential backup, and small-scale commercial applications. Compatible with most major inverter brands for seamless integration.

Norminal Battery Energy	5.12kwh	7.68kwh	10.24kwh	2.56kwh
Norminal Capacity	100Ah	150Ah	200Ah	100Ah
Norminal Voltage	51.2V	51.2V	51.2V	25.6V
Standard charge voltage	58.4V	58.4V	58.4V	29.2V
Max Charger Current	50A/100A	50A/100A	50A/100A	50A/100A
Communication interface	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN
Max. discharge current	100A/200A	100A/200A	100A/200A	100A/200A
Discharge cut-off voltage	42.0V	42.0V	42.0V	22.0V
Charge Temperature	0°C~50°C	0°C~50°C	0°C~50°C	0°C~50°C
Discharge Temperature	-20°C ~ 60°C	-20°C ~ 60°C	-20°C ~ 60°C	-20°C ~ 60°C
Size	590410145mm	850466145mm	850466145mm	505330165mm
Weight	About 43Kg	About 72Kg	About 86Kg	About 25Kg
Brand	ETOP POWER/OEM	ETOP POWER/OEM	ETOP POWER/OEM	ETOP POWER/OEM
Warranty	5-10 years	5-10 years	5-10 years	5-10 years
Design Life	18-20 years	18-20 years	18-20 years	18-20 years
Cycle Life	6000+ Cycle	6000+ Cycle	6000+ Cycle	6000+ Cycle
