FGCD-T201CT Lithium-Ion Battery Analyzer | Charge, Discharge & Capacity Tester

Overview

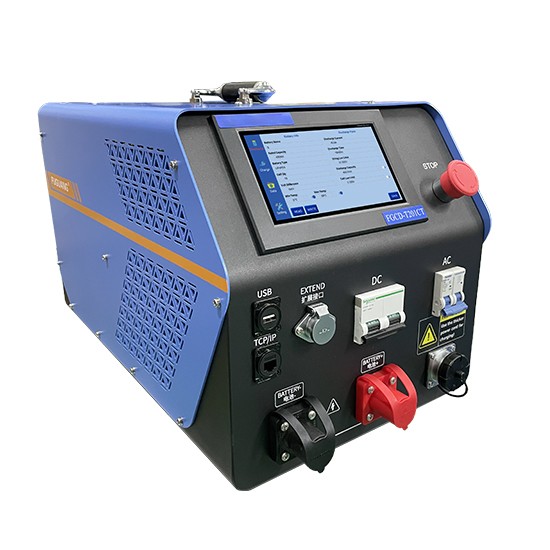

The FGCD-T201CT is a multifunctional battery maintenance and testing device designed for lithium battery modules and packs with a voltage range of 5–400V. It integrates multiple charging, discharging, and cycle testing modes to match the specific characteristics of lithium batteries, making it ideal for performance evaluation, fault diagnosis, and routine maintenance.
With a large LCD touchscreen, intuitive interface, and user-friendly operation, this unit enables technicians to manage battery packs more scientifically and extend service life.

Applications

• Discharge, charge, and cycle performance testing

• Regular recharging of backup energy storage battery packs

• Safety handling for battery transportation compliance

• Testing and restoring aftermarket faulty battery modules/packs

Key Features

• All-in-One Functionality – Integrates charge, discharge, and cycle testing in a single device, meeting all core battery maintenance needs.

• Optimized Maintenance Modes – Select the best charging/discharging mode based on battery type for maximum efficiency and performance.

• Wide Voltage Range – Suitable for various lithium-ion battery modules/packs from 5V to 400V.

• Multiple Discharge Modes – Supports constant current and constant power modes to simulate real load conditions and evaluate battery performance.

• High-Efficiency Charging – Three-stage charging process (CC–CV–float) to improve charging efficiency and battery health.

• Cell Voltage Acquisition – Real-time cell voltage monitoring via CAN bus or physical sampling, ensuring accurate capacity measurement and preventing overcharge/over-discharge.

• Comprehensive Protections – Automatic test termination, LCD alerts, and audible warnings for abnormal conditions.

• Smart Operation – Intelligent OS with large-screen interaction and user-friendly UI for efficient, accurate maintenance work.

• Versatile Communication Ports – Equipped with RS485 and CAN interfaces for seamless BMS connectivity.

• Calibration Capability – Supports on-site voltage and current calibration to maintain high measurement accuracy.
